Neural Networks for Physical Modelling Synthesis
ISMIR 2025 Tutorial
Queen Mary University of London
Why Neural Networks?
Traditional Physical Modelling:
- Pros:
- Extensive parameter control (e.g., excitation shape, string tension).
- Physically interpretable.
- Compact representation.
- Cons:
- Computationally expensive (often requires solving PDEs at audio rates).
- Deriving model equations is a domain-specific, expert-driven task.
- Difficult to estimate parameters from real-world audio.
Why Neural Networks?
Can we combine data-driven learning and physics-based priors?
| Physics-Informed NNs | Neural ODEs | Neural Operators | Deep Koopman | Deep State Space Models |
|---|---|---|---|---|
| Embeds the PDE into the loss function [1] | Learns the system’s continuous-time dynamics [2] | Learns the solution operator for the PDE. Maps functions to functions [3] | Learns a linear representation of the dynamics in an observable space [4] | Recurrent models with structured initialisation [5] |
Physics-Driven
Data-Driven
Tutorial Roadmap
A brief tour
- Physics-Informed Neural Networks
- Neural Ordinary Differential Equations
- Neural Operators
- Deep Koopman Operator
- Deep State Space Models
- Conclusion
Getting the code
To get the code for part3 of the tutorial you can clone the GitHub repository:
Recommended to use a uv (https://docs.astral.sh/uv/)
Otherwise, you can create a venv (>=3.11) and install the dependencies with pip:
Download the data from the Google Drive link (https://tinyurl.com/nh4kutj4) and place it in the data/ folder, next to the notebooks.
Physics-Informed Neural Networks
Physics-Informed Neural Networkslosses
Physics-Informed Neural Networks
Embed the physical law itself into the learning objective [1].
A neural network \(u_\theta(\mathbf{x}, t)\) directly approximates the solution to a PDE. The loss function forces the network’s output to satisfy two things:
- Data Fidelity: Match observed data points (initial/boundary conditions).
- Physics Fidelity: Obey the governing PDE at all points in the domain.
The physics part of the loss is mostly in the PDE residual: \[ \mathcal{L}_{\text{physics}} = || \mathcal{N} u_\theta - f ||^2_{\Omega} \] where \(\mathcal{N}\) is the differential operator.
Example: Damped Harmonic Oscillator
Example: Damped Harmonic Oscillator
Physics-Informed Neural Networks: Challenges & Summary
- Core Idea: Embeds the governing PDE directly into the loss function using automatic differentiation.
- Application: Powerful for enforcing physical constraints in data-limited high-dimensional scenarios [6].
- Challenges: Training is notoriously difficult [7], often requiring custom strategies [8], not very effective compared to other approaches [9].
Neural Ordinary Differential Equations
Neural Ordinary Differential Equations
A Neural ODE (NODE) defines the continuous evolution of a state \(\mathbf{u}(t)\) by parameterizing its time derivative with a neural network \(f_\theta\):
\[ \frac{d\mathbf{u}(t)}{dt} = f_\theta(\mathbf{u}(t), t) \]
The network learns the the dynamics, not the solution trajectory itself. The final state is found by integrating this equation using a numerical ODE solver. [10]
Neural Ordinary Differential Equations
Training: Gradients are propagated back through the solver’s operations, either by BPTT (discretise-optimise) or using the adjoint sensitivity method (optimise-discretise) [2].
Numerical Integration: We can leverage the vast literature in numerical integration for stability and efficiency.
Hybrid Modelling: We can combine known physics with learned components, optimizing physical parameters and neural networks.
Neural ODEs: Time Integration
The discretisation scheme defines the architecture of the recurrent block.
For Störmer-Verlet:
Example: Non-Linear String
Neural ODEs: Challenges & Summary
Challenges:
- Core Idea: Neural ODEs optimise continuous parameters and use discretisations based on well-known numerical schemes. Allow hybrid models that combine known physics with learned dynamics.
- Application: Good for parameter estimation for known physical models [[11]][12]
- Challenges: Use back-propagation through time (BPTT). ODE solver choice can significantly impact stability and accuracy.
Neural Operators
Neural Operators
For time-dependent problems, Neural Operators learn the operator that maps functions (initial conditions, forcing terms and paramaters) directly to the solution at a future time.
Given a time-dependent PDE with an initial state \(\mathbf{u}_0(\mathbf{x})\), parameters \(\mathbf{a}\), and a forcing function \(\mathbf{f}(\mathbf{x}, t)\):
\[ \frac{\partial \mathbf{u}}{\partial t} = \mathcal{N}_a(\mathbf{u}) + f(\mathbf{x}, t) \]
The neural operator approximates:
\[ \mathbf{u}(\cdot, T) \approx \mathcal{G}_\theta(\mathbf{u}_0, a, \mathbf{f}) \]
Neural Operators: Fourier kernel
\[ \begin{aligned} u(x) &= \int_{\Omega} \kappa(x, y) u_0(y) \mathrm{d} y \\ u(x) &= (\kappa * v)(x) \end{aligned} \]
using the convolution theorem, we have:
\[ \mathcal{F}(u) = \mathcal{F}(\kappa) \cdot \mathcal{F}(u_0) \quad \implies \quad u(x) = \mathcal{F}^{-1}(\mathcal{F}(\kappa) \cdot \mathcal{F}(u_0))(x) \]
The Fourier Neural Operator approximates this by replacing the transform of the kernel with learnable weights
\[ u(x) \approx \mathcal{F}^{-1}(\mathcal{R}_{\theta} \cdot \mathcal{F}(v))(x) \]
where we optimise the (typically truncated) complex weights \(\mathcal{R}_{\theta}\) during training.
Neural Operators: An Interpretation
For linear PDEs, the operator can be interpreted as a modal method [13]:
\[ u(x, t) \approx \mathcal{T}^{-1}(e^{\mathcal{\Lambda}t} \cdot \mathcal{T}(u_0))(x) \]
where the forward and inverse transforms are defined as follows:
\[ \begin{aligned} \mathcal{T}\{u(x,t)\} &= \int_{V}\tilde{K}_{\mu}^{H}(x)u(x,t)dx && \text{(Forward Projection)} \\ \mathcal{T}^{-1}\{q_{\mu}(t)\} &= \sum_{\mu=0}^{\infty}\frac{{q}_{\mu}(t)K_{\mu}(x)}{||K_{\mu}||} && \text{(Back-Projection)} \end{aligned} \]
- \(K_\mu\) are the eigenfunctions of the spatial operator
- \(\Lambda\) is a diagonal matrix of the corresponding eigenvalues
Example: Non-Linear String
AR:
Neural Operators: Summary & Challenges
- Core Idea: Learns the solution operator of a PDE, often implemented efficiently as a Fourier Neural Operator (FNO).
- Application: It can be used to model the dynamics of vibrating systems (e.g., strings, membranes) for sound synthesis [13], [14].
- Challenges: Models can be computationally complex and require large datasets. Not efficient for sample-by-sample processing.
Deep Koopman Networks
Linearizing the Non-Linear

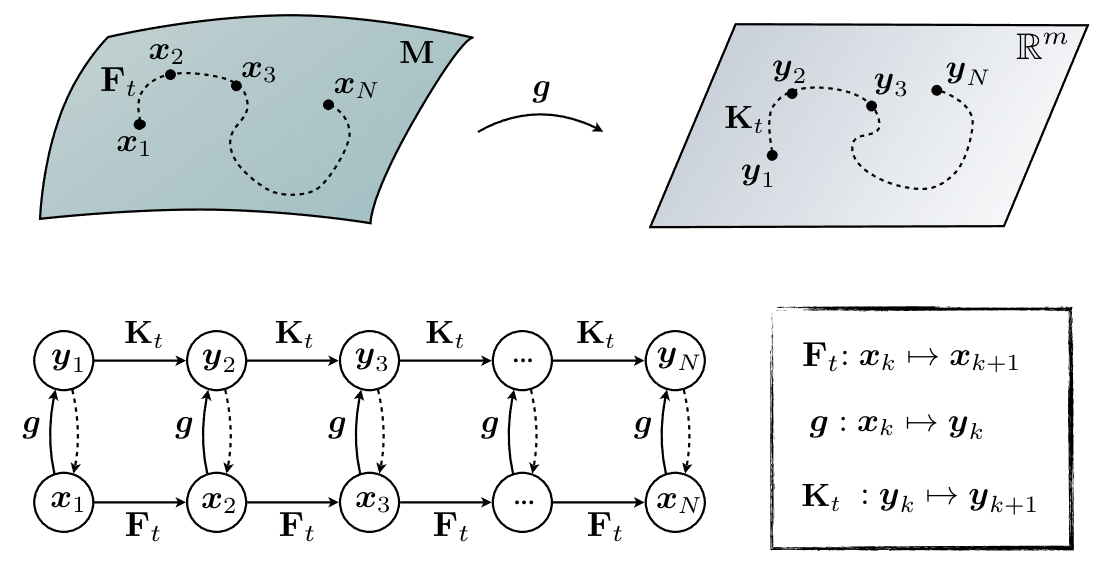

From [15]
The Koopman Idea: Instead of analyzing the system in its native state space, lift it to a different, possibly infinite-dimensional observable space, where the dynamics become linear. The Koopman Operator \(K\) is the linear operator that evolves the observables forward in time \[g(\mathbf{u}_{k+1}) = (Kg)(\mathbf{u}_k)\]
Deep Koopman Networks (DKNs)
How do we find the observable functions \(g\)? The space of all possible observables is infinite-dimensional.
Autoencoder
with dynamics constraints in the latent space
Example
Losses:
\[ \begin{aligned} \mathcal{L}_{\text {consistency }} & =\sum_{k=1}^{L-1}\left\|\varphi\left(x_k\right)-\Lambda^k \varphi\left(x_0\right)\right\|_2^2 \\ \mathcal{L}_{\text {pred }} & =\sum_{k=1}^{L-1}\left\|x_k-\varphi^{-1}\left(\Lambda^k \varphi\left(x_0\right)\right)\right\|_2^2 \\ \mathcal{L}_{\text {enc }} & =\left\|x_0-\varphi^{-1}\left(\varphi\left(x_0\right)\right)\right\|_2^2 \\ \mathcal{L} & =\alpha_1 \mathcal{L}_{\text {pred }}+\alpha_2 \mathcal{L}_{\text {enc }}+\alpha_3 \mathcal{L}_{\text {consistency }} \end{aligned} \]
Example
Example: 2D Visualisation
Koopman and Modal Analysis
For Linear Systems (e.g., an ideal string)
- The Koopman eigenfunctions (\(\varphi_i\)) are the spatial modes of the string.
- The Koopman eigenvalues (\(\lambda_i\)) represent the modal frequencies and damping.
For Non-Linear Systems
We find some parameterisation of linear resonators that account for the coupling and pitch glide effects.
Deep Koopman Networks: Summary & Challenges
Deep State Space Models
Deep State Space Models: The Core Idea
Representation for linear time-invariant (LTI) systems:
\[ \begin{aligned} \dot{\mathbf{x}}(t) &= \mathbf{A} \mathbf{x}(t) + \mathbf{B} \mathbf{u}(t) \quad & \ \mathbf{y}(t) &= \mathbf{C} \mathbf{x}(t) + \mathbf{D} \mathbf{u}(t) \quad & \end{aligned} \]
Deep State Space Models: Recurrence and Convolution
- Recurrent Representation: After discretisation, the SSM is a linear RNN. This is very efficient for auto-regressive inference (generating one sample at a time).
\[ \begin{aligned} \mathbf{x}_k &= \bar{\mathbf{A}} \mathbf{x}_{k-1} + \bar{\mathbf{B}} \mathbf{u}_k \\ \mathbf{y}_k &= \bar{\mathbf{C}} \mathbf{x}_k \end{aligned} \]
- Convolutional Representation: Because the system is LTI, its output is the convolution of the input with a fixed impulse response (or kernel)
\[ \mathbf{h}_k = \bar{\mathbf{C}} \bar{\mathbf{A}}^k \bar{\mathbf{B}} \]
This allows us to use FFT to apply the convolution efficiently.
Deep State Space Models: Summary & Challenges
- Core Idea: A sequence model based on a learnable state-space representation that can be viewed as both a recurrent system (for efficient inference) and a convolutional system (for fast, parallel training).
- Application: Good at modelling long sequences, making them effective for tasks like unconditional raw audio generation [18] and physical modelling [19].
- Primary Challenge: Performance is sensitive to the initialisation of parameters. Large number of parameters can make them difficult to train and deploy in real-time audio applications.
Comparison with the String
Comparison
| Method | Core Idea | Prior | Time | Advantage | Challenge |
|---|---|---|---|---|---|
| Neural ODE | Learn vector field | Weak-Strong | Continuous | Flexible/hybrid | Solver cost |
| PINN | PDE in loss | Strong | Continuous | Inverse problems | Hard optimisation |
| Neural Operator | Learn operator | Weak | Agnostic | Discretisation invariant | Computational cost |
| Koopman | Linear in latent | Weak | Discrete | Fast, interpretable | Data and initialisation |
| DSSM | Linear in latent (with non-linear blocks) | Weak | Continuous/Discrete | Fast | Large, black box |
